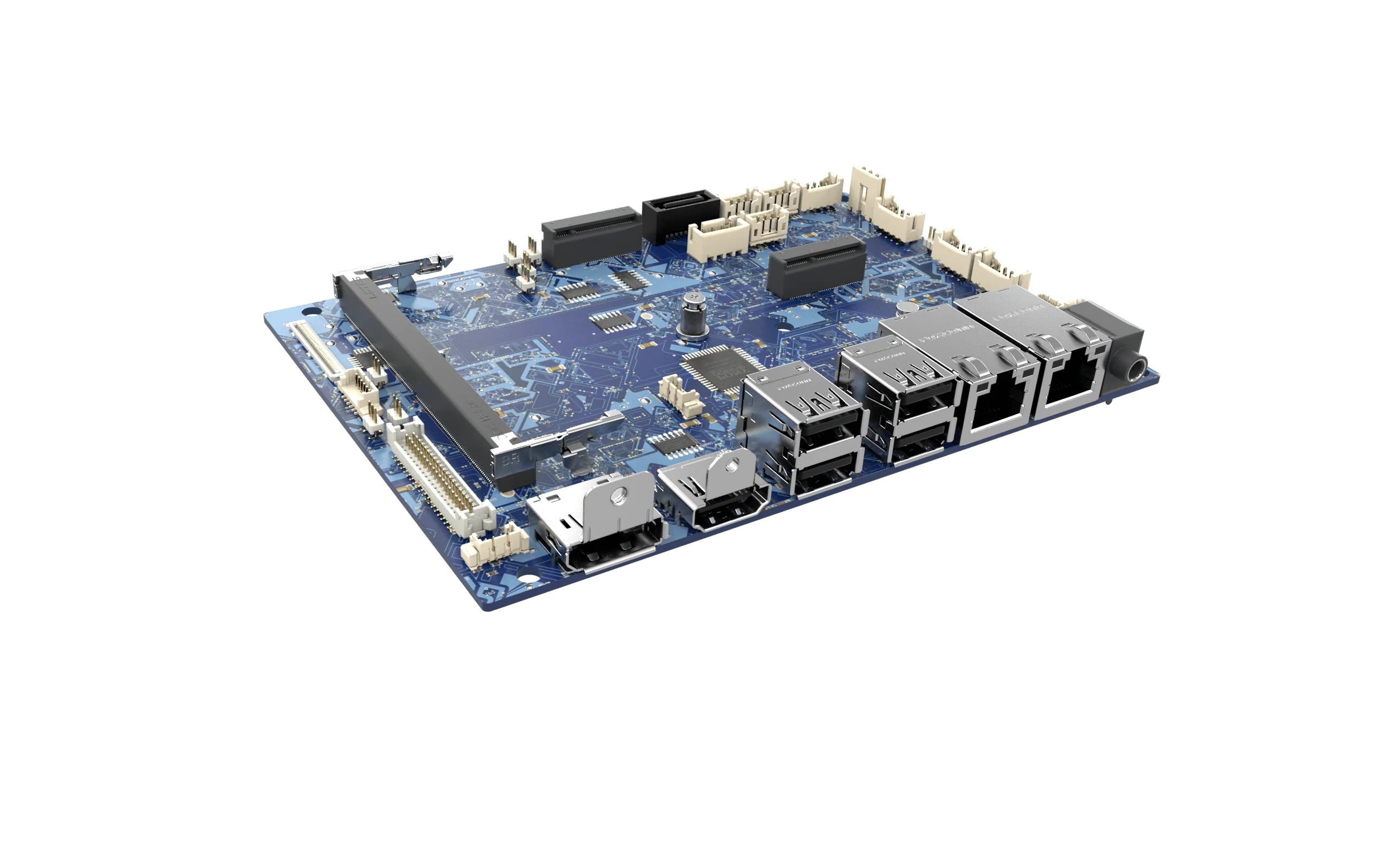

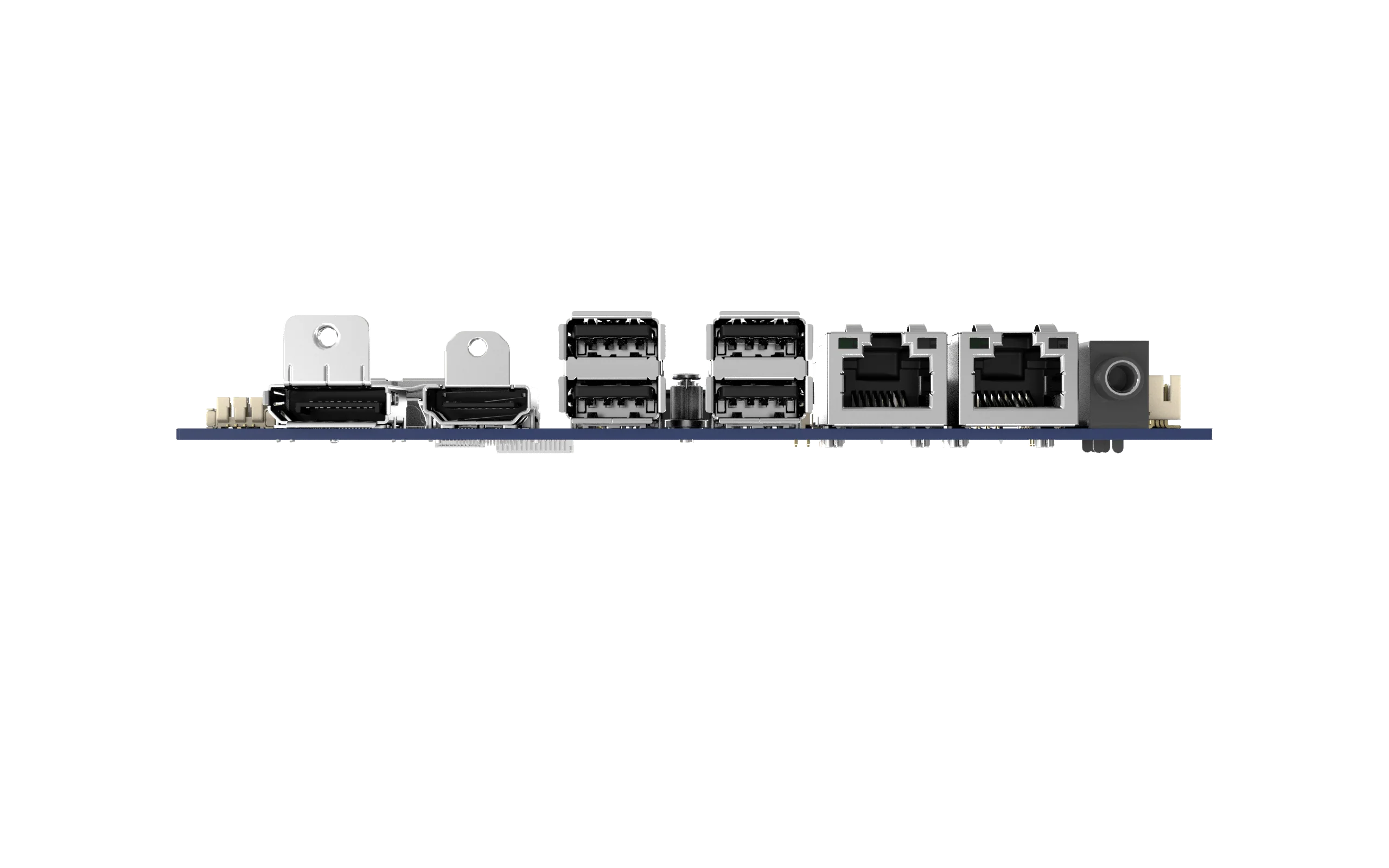

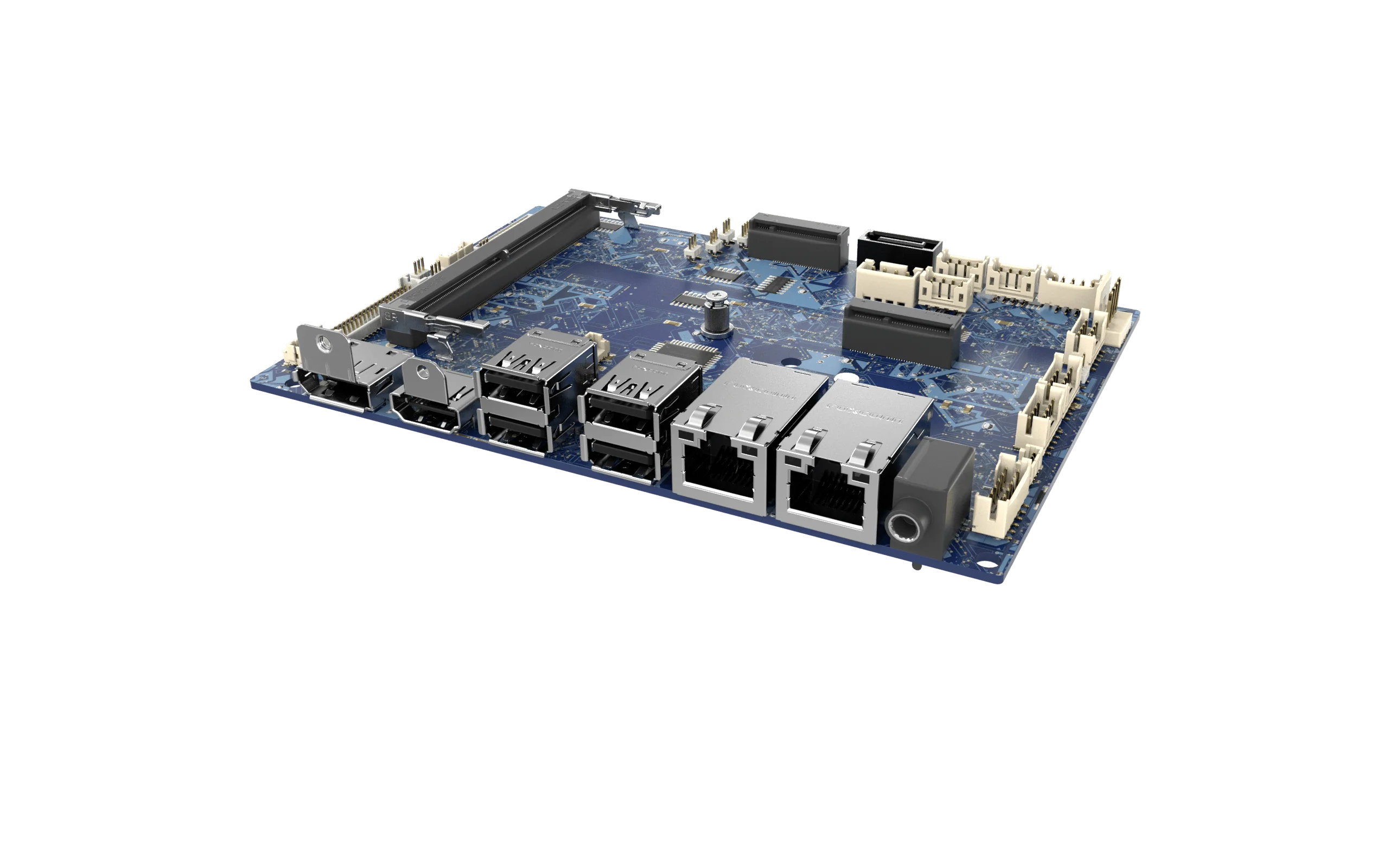

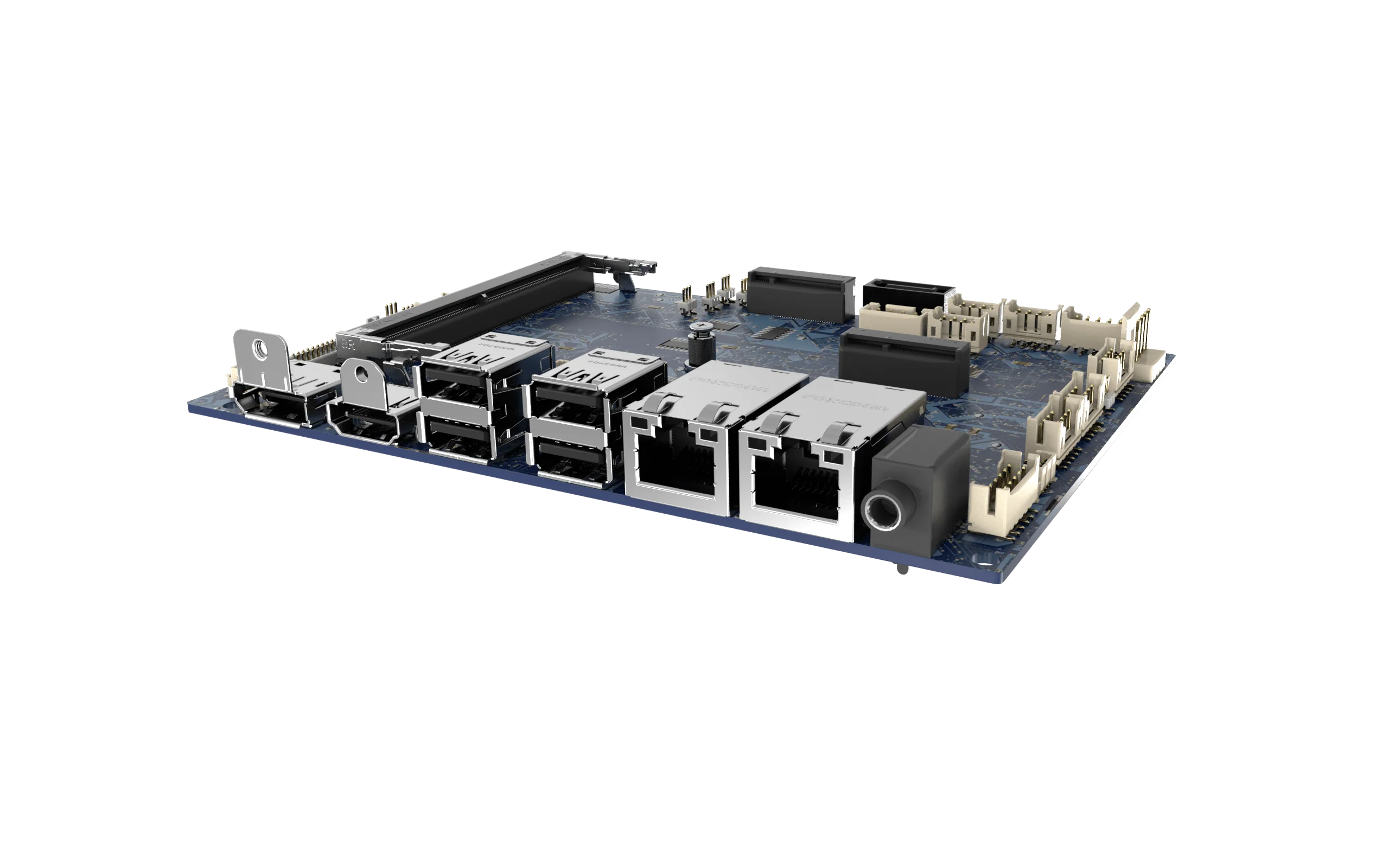

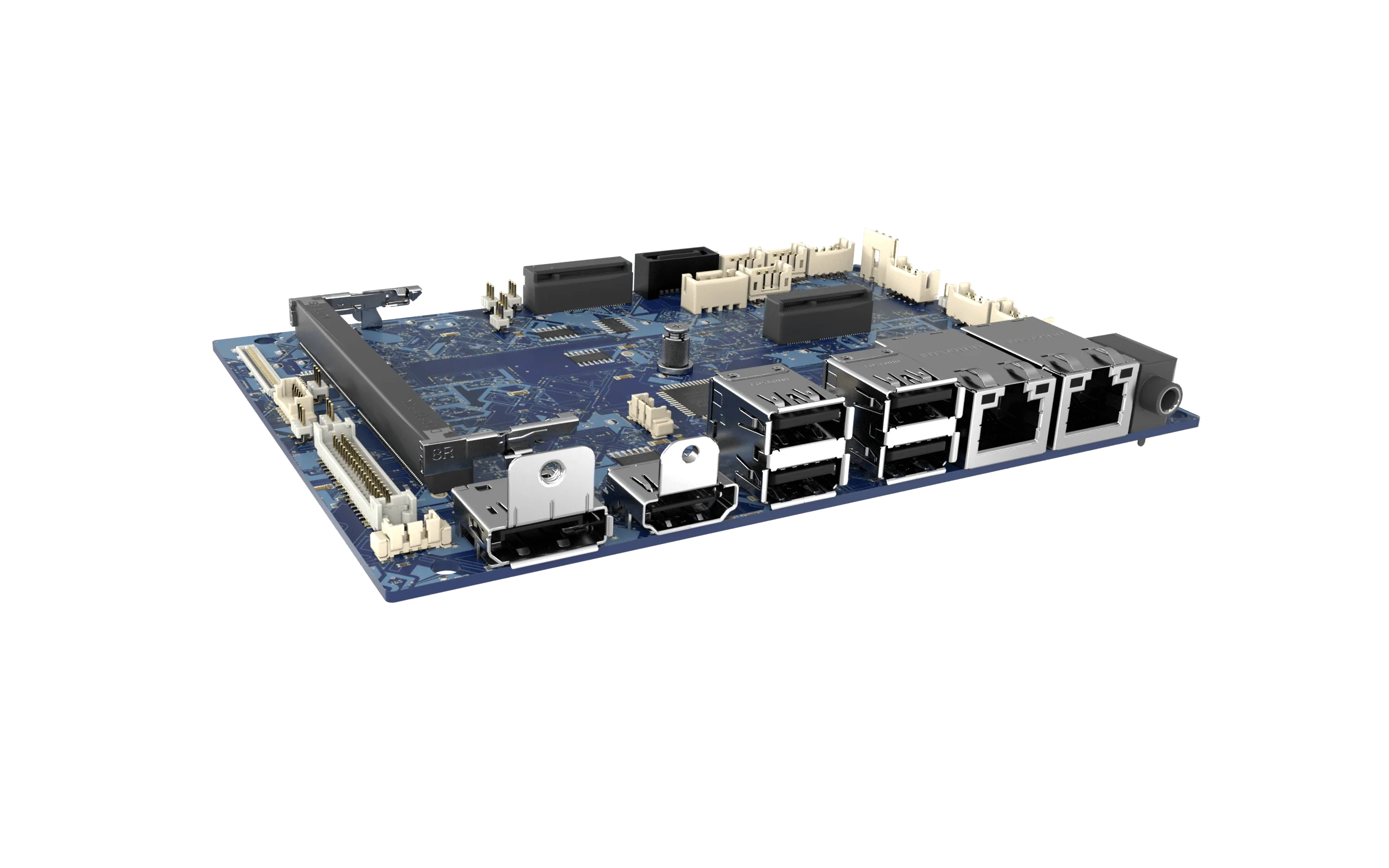

CT-DAL01 3.5" SBC Industrial Motherboard with Intel® 12th Gen Alder Lake-N Processors, 2x LAN

CT-DAL01 3.5" SBC Industrial Motherboard with Intel® 12th Gen Alder Lake-N Processors, 2x LAN

  • Supports 12th Gen. Intel® IoTG Alder Lake-N Processors
  • 1x 262-pin DDR5 4800/5600 MT/s SO-DIMM. Max. 32GB
  • 2x 2.5 GbE RJ45 LAN
  • Triple independent display supported: DP, HDMI, LVDS, eDP
  • 1x Front Panel with Audio support by internal header
  • 1x M.2 B Key 2242/2280/3042, 1x M.2 E Key 2230
  • 2x USB 3.2 Gen 2 (10Gbps), 2x USB 3.2 Gen 1 (5Gbps), 6x USB 2.0 (internal)
  • 1x RS-232/422/485, 1x RS-232 (internal), 1x 8-bit GPIO
  • 1x SATA 3.0 6Gb/s (Support AHCI)
  • Watchdog timer 1~256sec. system reset
  • dTPM 2.0 Supported
  • Wide Voltage DC-IN 9~36V
$140.00

Original: $400.00

-65%
CT-DAL01 3.5" SBC Industrial Motherboard with Intel® 12th Gen Alder Lake-N Processors, 2x LAN—

$400.00

$140.00
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

Description

  • Supports 12th Gen. Intel® IoTG Alder Lake-N Processors
  • 1x 262-pin DDR5 4800/5600 MT/s SO-DIMM. Max. 32GB
  • 2x 2.5 GbE RJ45 LAN
  • Triple independent display supported: DP, HDMI, LVDS, eDP
  • 1x Front Panel with Audio support by internal header
  • 1x M.2 B Key 2242/2280/3042, 1x M.2 E Key 2230
  • 2x USB 3.2 Gen 2 (10Gbps), 2x USB 3.2 Gen 1 (5Gbps), 6x USB 2.0 (internal)
  • 1x RS-232/422/485, 1x RS-232 (internal), 1x 8-bit GPIO
  • 1x SATA 3.0 6Gb/s (Support AHCI)
  • Watchdog timer 1~256sec. system reset
  • dTPM 2.0 Supported
  • Wide Voltage DC-IN 9~36V
